Corrugated Panel

Aluminium Corrugated Panel is a type of ACP which on the aluminium sheet has a shape like a water wave. In this type of material, it functions as an air path between the front panel and the rear panel which is able to deflect heat radiation so that certain rooms do not have too high a temperature. In addition, this product is one of the best products that are enviromentally friendly and pollution-free

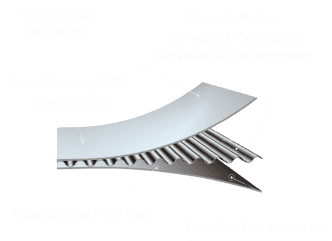

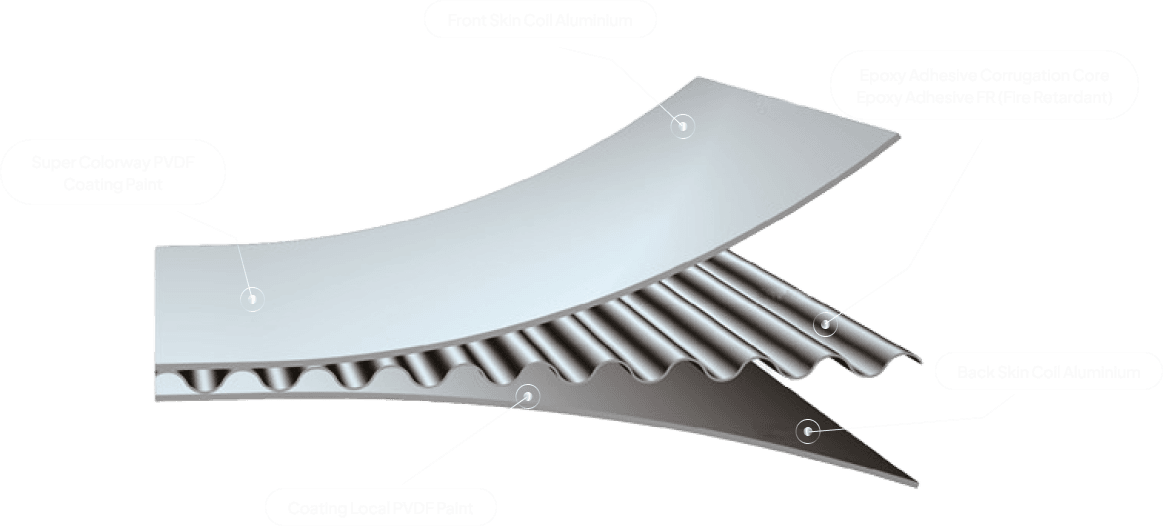

Alucosite Factory
Alucosite corrugated panel line core image

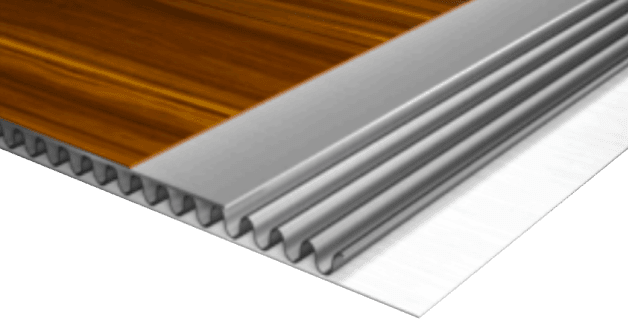

Line Core

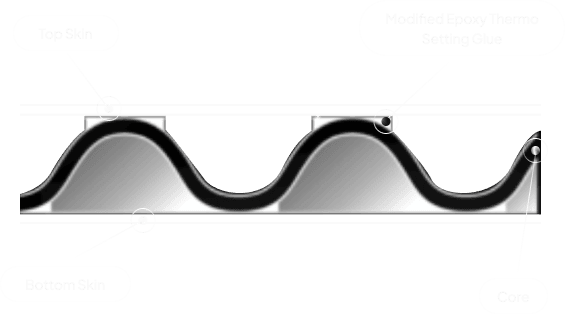

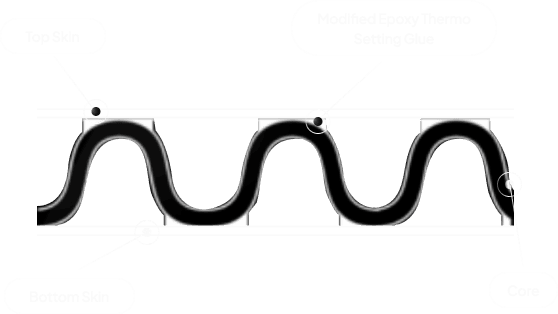

Alucosite corrugated panel bubble core image
Alucosite corrugated panel bubble core image

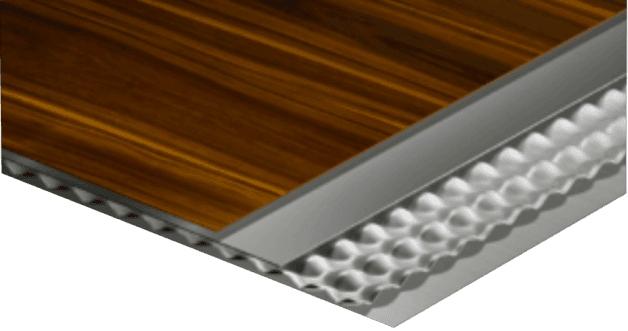

Bubble Core

Alucosite corrugated panel bubble core image
ISO logos

Physical Properties

check icon

Thickness of Composite Panel

4.5 mm

check icon

Core

Unbreakable Polyethylene

check icon

Surface Hardness

2H

check icon

Bending Strength

186.5 Mpa

check icon

Thickness of Aluminium Skin Coil

0.7 mm (front) - 0.5 mm (back)

check icon

Coating Paint

PVDF “Color Way”

check icon

Gloss Tolerance

1.3

check icon

Role Peel Strength

187.9 N.mm/mm || 155.7N.mm/mm

check icon

Thickness of Coating

28 Micro

check icon

Fire Retardant

AA Class Non Combustible

check icon

Flexibility

2T

check icon

Standard Size of Each Sheet

1220mm x 4880mm / Sheet

check icon

Aluminium Alloy

3003

check icon

Weight

4.7 kg/m2

check icon

Linier Thermal Expansion Coefficient

1.80 x 10^-5 C^-1

Versatile Elegance Solution

Alucosite Stretch Icon

Interior Use

Alucosite Corrugated Panel elevates interiors with modern elegance, offering versatility for indoor use and potential applications outdoors, providing a flexible design solution.

Alucosite Stretch Icon

Guarantee Product

Backed by our quality guarantee, Alucosite Corrugated Panel ensures satisfaction, reflecting our commitment to excellence and delivering peace of mind to our customers.

Alucosite Stretch Icon

Easy Installation

Alucosite Corrugated Panel promises easy setup, presenting a plug-and-play solution for both professionals and DIY enthusiasts. Its accessibility simplifies the realization of design aspirations effortlessly.

Alucosite Stretch Icon

Strength & Resilience

Engineered for enduring strength and aesthetic resilience, Alucosite Corrugated Panel's robust construction guarantees reliability, ensuring a lasting appeal across a diverse range of applications.

Flag BG

Corrugated Panel

Alucosite Factory

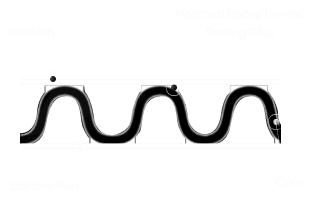

Alucosite's corrugated panel line core image

Line Core

Alucosite's corrugated panel line core image

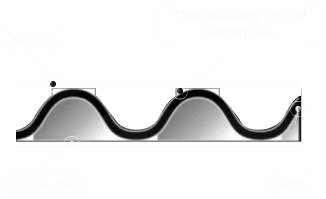

Alucosite's corrugated panel bubble core image
